Travel options from 50–500 mm

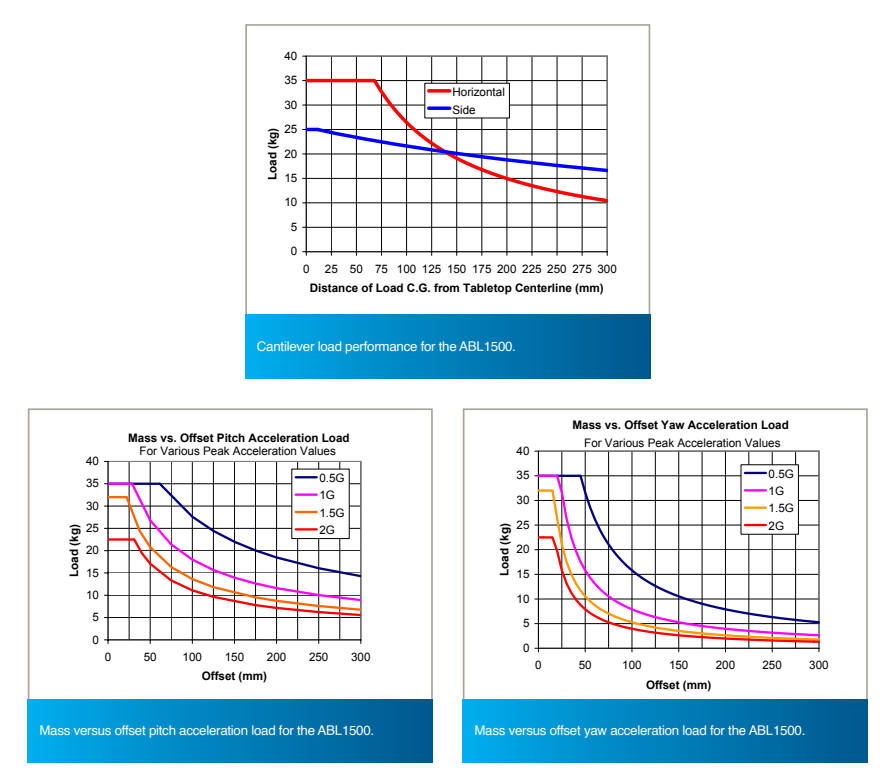

Supports payloads up to 35 kg
Ironless linear motor provides ULTRASMOOTH MOTION with zero cogging
Optional 4 µm encoder scale option
provides SUB-NANOMETER
RESOLUTION for superior DYNAMIC
ACCURACY AND VELOCITY
STABILITY

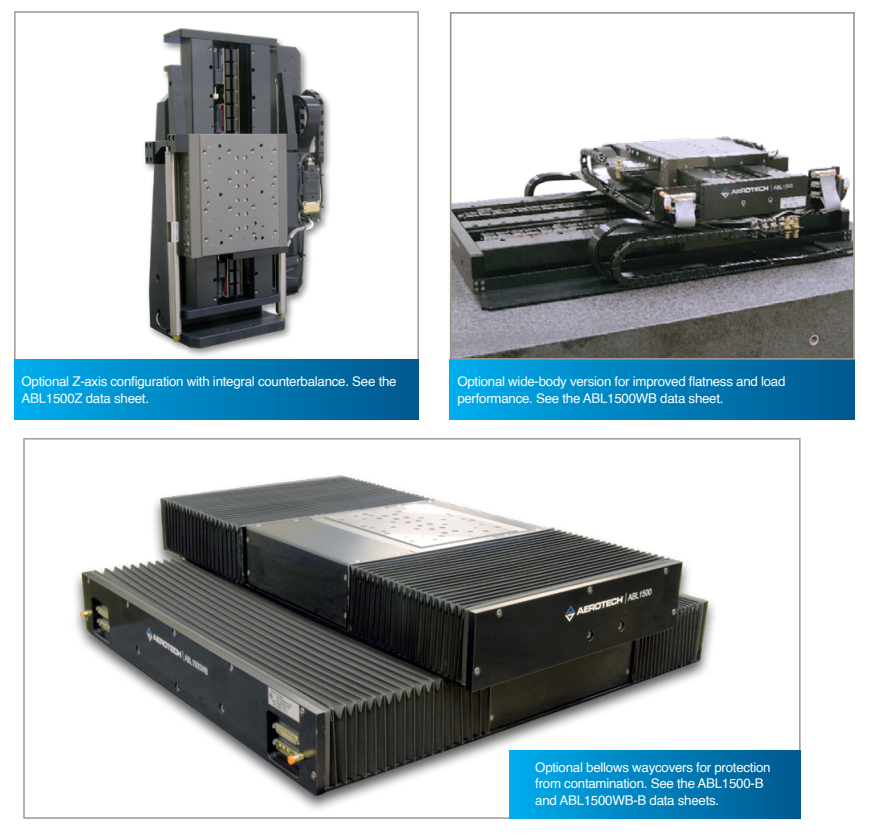

Rated for NORMAL- AND SIDEMOUNTING
EASY TO INTEGRATE with other
ABL1500 stages and more to build
multi-axis systems
使用说明下载
ABL1500-Data-Sheet-D20250424.pdf
